Detail produk:
|
Barang: | Pembacaan Digital SDS2MS pada Dua Sumbu | Jumlah koordinat: | 2 koordinat |
---|---|---|---|
Sinyal input yang diizinkan: | Gelombang persegi TTL | Kelas Perlindungan: | IP53 |
Jaminan: | 12 bulan | Skala DRO Resolusi panjang: | 5um,1um, 0,5um, 0,1um |
Penggunaan: | Mesin EDM, mesin bubut, mesin bor, dan mesin frais; | Bahan Dro: | Kasing logam |
Kekuatan: | AC 110V / 220V | Resolusi Encoder: | 1 mikron untuk encoder linier |
Waktu pengiriman: | 10–14 hari setelah pembayaran penuh | Suhu sekitar: | 0 ~ 60 ℃ |
Menyoroti: | 2 axis digital readout DRO,milling boring machine linear scale,SINO SDS-2MS encoder |

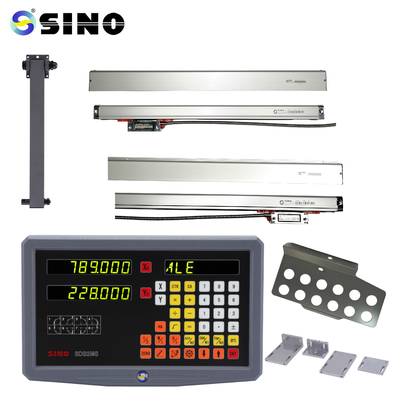

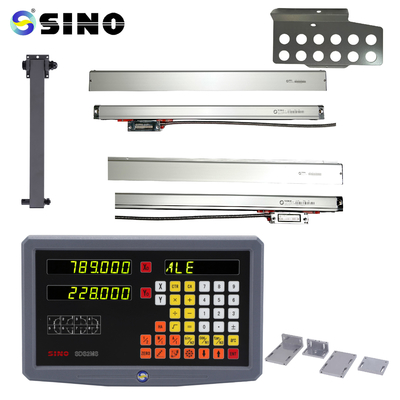

2 Axis Digital Readout DRO for Milling and Boring Machines SINO SDS-2MS
The primary purpose of this accurate measuring tool is to provide detection and localization capabilities for different kinds of manual machines used in production or testing. It is a digital readout DRO with two axes.
Item | 2 Axis DRO for lathe |
Power voltage selection | AC 100V-240V 50Hz-60Hz |
Power consumption | 25VA |
Working temperature | 0℃~45℃ |
Storage temperature | -30℃~70℃ |
Relative humidity | <90%(20±5℃) |
Weight | 840g |
Frequency multiplication | 4X |
Within a year of the product's sale, "Three Guarantees" must be included, along with a 15-day limited replacement and free repair period. When replacing accessories, they must be in their whole. A few of the services listed below are not free: 1. beyond a year's warranty; 2. unanticipated damage brought on by disregard for usage, maintenance, and storage guidelines; 3. harm resulting from unapproved repairs; 4. Without a license invoice (unless the products may be shown during the warranty period); 5. damage caused by irresistible force.
